Small Medium Frequency Induction Melting Furnace For Melting Metal 45kw
  • Small Medium Frequency Induction Melting Furnace For Melting Metal 45kw
  • Small Medium Frequency Induction Melting Furnace For Melting Metal 45kw
  • Small Medium Frequency Induction Melting Furnace For Melting Metal 45kw
  • Small Medium Frequency Induction Melting Furnace For Melting Metal 45kw

Small Medium Frequency Induction Melting Furnace For Melting Metal 45kw

Place of Origin China
Brand Name Lanshuo
Certification CE
Model Number LSZ-45
Product Details
Type:
Induction Melting Furnace
Power:
45kw
Input Current:
80A
Voltage:
3-phase 380v, 50/60hz
Oscillation Frequency:
1-15KHZ
Connecting Wire:
35mm2
Control Switch:
3*120A
Ground Wire:
2mm2
Cooling Water Pressure:
≥0.2MPa
Cooling Water Flow:
≥15L/Min
Color:
Customizable
Size:
460*270*450mm/550*300*500mm
Weight:
57kg
Highlight:

medium frequency induction melting furnace

,

electric metal melting furnace

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
USD4000---10000 / set
Packaging Details
wooden boxes
Delivery Time
5-10 working days after receiving advanced payments
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
200 sets per year
Product Description

LSZ-45 45kw Electric Metal Induction Melting Furnace for Melting Metal

1. Brief Introduction of Electric Metal Induction Melting Furnace:



Medium frequency induction melting furnace is an induction heating machine. Alternating current in the coils melts the metals in the crucible and then heats the hot metal to the temperature needed. It is the heat treatment prior to forging, sintering and hot rolling in casting and melting industries.



2. Electric Metal Induction Melting Furnace Feature:

1. Very easy to install and operate, Quickly study.
2. Ultra-small size, light weight, portable, occupies less than one square meter.
3. 24 hours uninterrupted smelting capacity.
4. Energy saving.
5. The furnace is to facilitate the replacement of different weights, different materials, different furnace way in order to accommodate each Kind smelting requirements.
6. The use of ultra-small frequency induction heating power supply frequency power, Its totally different from traditional furnace.
7. Heating through heat resistance, temperature uniformity.
8. The intermediate magnetic field on the molten metal with a magnetic stirring effect, and beneficial to ingredients are uniformly.
9. According to the recommended maximum smelting equipment and the amount of time each furnace smelting 20-60 minutes.



3. Melting Capacity of Electric Metal Induction Melting Furnace:



Model Power Melting Capacity
steel, stainless steel copper, gold, silver aluminum, aluminum alloy
LSZ-15 15kw 3kg 10kg 3kg
LSZ-25 25kw 5kg 20kg 5kg
LSZ-35 35kw 10kg 30kg 10kg
LSZ-45 45kw 18kg 50kg 18kg
LSZ-70 70kw 25kg 100kg 25kg
LSZ-90 90kw 40kg 120kg 40kg
LSZ-110 110kw 50kg 150kg 50kg
LSZ-160 160kw 100kg 250kg 100kg





4. Electric Metal Induction Melting Furnace Application:

Small Medium Frequency Induction Melting Furnace For Melting Metal 45kw 0



5. Main technical parameters of LSZ series induction melting furnace:

Model Power Input current Voltage Oscillation frequency

Connect-

ing wire

Control switch
LSZ-15 15kw 18A 3-phase 380 V, 50/60 Hz 1-15KHz 10mm2 3*40A
LSZ-25 25kw 36A 10mm2 3*60A
LSZ-35 35kw 57A 16mm2 3*80A
LSZ-45 45kw 80A 35mm2 3*120A
LSZ-70 70kw 110A 50mm2 3*150A
LSZ-90 90kw 140A 75mm2 3*225A
LSZ-110 110kw 160A 90mm2 3*225A
LSZ-160 160kw 240A 120mm2 3*300A



6.  Packaging of Electric Metal Induction Melting Furnace:

Small Medium Frequency Induction Melting Furnace For Melting Metal 45kw 1

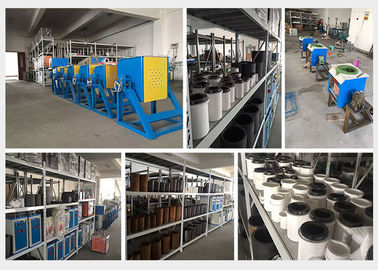

7. Company Brief Introduction :
Small Medium Frequency Induction Melting Furnace For Melting Metal 45kw 2
Small Medium Frequency Induction Melting Furnace For Melting Metal 45kw 3
Small Medium Frequency Induction Melting Furnace For Melting Metal 45kw 4
8. Customer Center:
Small Medium Frequency Induction Melting Furnace For Melting Metal 45kw 5
9. Canton Fair
Small Medium Frequency Induction Melting Furnace For Melting Metal 45kw 6Small Medium Frequency Induction Melting Furnace For Melting Metal 45kw 7
10. Trade Process:
Small Medium Frequency Induction Melting Furnace For Melting Metal 45kw 8
