Auto IGBT Induction Brazing Machine Welding Equipment 16kw High Frequency

China Zhengzhou Lanshuo Electronics Co., Ltd certification
China Zhengzhou Lanshuo Electronics Co., Ltd certification
машина индукционного нагрева хороша, я доволен этим.

—— Жүгнээ Цогбадрах

Je suis satisfait du four de fusion par induction, j'espère coopérer à l'avenir.

—— amine ouarroch

I'm Online Chat Now

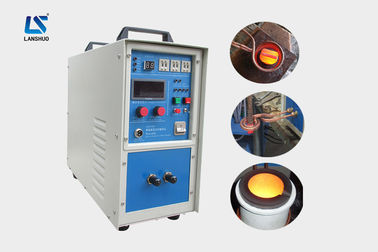

Auto IGBT Induction Brazing Machine Welding Equipment 16kw High Frequency

Auto IGBT Induction Brazing Machine Welding Equipment 16kw High Frequency
Auto IGBT Induction Brazing Machine Welding Equipment 16kw High Frequency

Large Image :  Auto IGBT Induction Brazing Machine Welding Equipment 16kw High Frequency

Product Details:
Place of Origin: China
Brand Name: Lanshuo
Certification: CE
Model Number: LSW-16
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 1000-1600 / set
Packaging Details: 1.Standard wooden case, plywood case, and custormized case; 2. Inner packing: packing plastic film and foam in case of friction dampness and shake; 3.Accessories: induction coil 1, foot pedal 1, installing and operating instruction 1 and custormized del
Delivery Time: 5-7 working days after receiving advanced payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2000 set per year
Detailed Product Description
Type: Induction Brazing Equipment Voltage: 220V
Current: 35A Rated Capacity: 16kw
Rated Duty Cycle: 90% Dimension: 430*200*400mm
Weight: 25kg Usage: Brazing, Welding
Power: 16kw Color: Optional
High Light:

induction brazing equipment

,

induction welding machine

LSW-16 16kw Portable Automatic IGBT Induction Brazing Welding Equipment



1. Induction Brazing Equipment Brief Introduction :

  high frequency induction heating equipment is particularly suitable for heat treatment and quenching, melting, annealing, the metal through the heat forging, extrusion, welding, brazing.

2. Main characteristics of LSW-16 Induction Brazing Equipment :

1. Adoping IGBT, inverting device, tracking frequency automatically

2. High frequency, heated quickly, its power consumption is only 20%-30% of electronic tube copper tube brazing machine and other heating style.
3. Security and reliability, the equipments have the secure voltage and it’s secure to operate.
4. Manual, automatic regulating automatically, it can protect itself from over voltage, over current, lack of water, phase fail, over hot, etc.
5. It has no open-fire, noise and pollution ,be suit for the environmental protection and fire.

3. Technical Parameters of LSW-16 Induction Heating Equipment:

Model LSW-16
Working Voltage 220V, 50/60HZ
Max input power 16kw
Oscillation frequency 28-40KHZ
Duty cycle 100%
Cooling water flow 20L/Min,0.15-0.2MPa
Weight 25kg
Dimension (L*W*H ) 420*200*360mm
Material stainless steel
Color support customized
Usage metal heating, brazing,melting etc

4. Induction Brazing Equipment Application:

1. carbide cutting tools welding. Such as turning, milling, cutter knife.
2. the diamond saw blade welding. Such as diamond saw blade, abrasive, jagged welding. Exploration drill bit used in welding, such as word drill, drill welding horns.
3. brass,copper

Auto IGBT Induction Brazing Machine Welding Equipment 16kw High Frequency 0

Auto IGBT Induction Brazing Machine Welding Equipment 16kw High Frequency 1

5. Packaging Of Induction Brazing Equipment:

Auto IGBT Induction Brazing Machine Welding Equipment 16kw High Frequency 2

As for packaging of induction heating machine: The machine is always packed with wrapping film for waterproof, and then put into a standard exporting plywood case with foam around for shockproof.
As for shipping of induction heating machine:
1. If you have a shipper in China, we can send the machines to him or her for free.
2. If you want us to send the machines to you directly, we can send them to any main port of China promptly.
