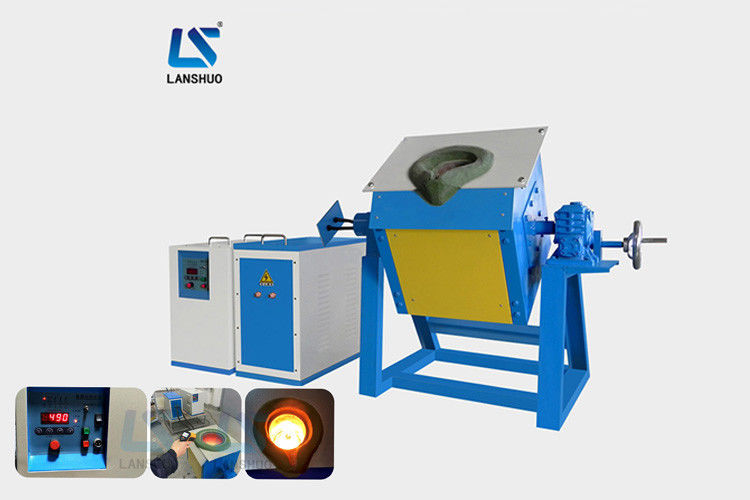

15kw Medium Frequency Induction Melting Furnace , Gold Melting Induction Furnace

China Zhengzhou Lanshuo Electronics Co., Ltd certification
China Zhengzhou Lanshuo Electronics Co., Ltd certification
машина индукционного нагрева хороша, я доволен этим.

—— Жүгнээ Цогбадрах

Je suis satisfait du four de fusion par induction, j'espère coopérer à l'avenir.

—— amine ouarroch

I'm Online Chat Now

15kw Medium Frequency Induction Melting Furnace , Gold Melting Induction Furnace

15kw Medium Frequency  Induction Melting Furnace , Gold Melting Induction Furnace
15kw Medium Frequency  Induction Melting Furnace , Gold Melting Induction Furnace

Large Image :  15kw Medium Frequency Induction Melting Furnace , Gold Melting Induction Furnace

Product Details:
Place of Origin: China
Brand Name: Lanshuo
Certification: CE
Model Number: LSZ-15
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD5000---20000 / set
Packaging Details: wooden boxes
Delivery Time: 5-10 working days after receiving advanced payments
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per year
Detailed Product Description
Type: Induction Melting Furnace Power: 15kw
Input Current: 18A Voltage: 3-phase 380v, 50/60hz
Oscillation Frequency: 1-15KHZ Connecting Wire: 10mm2
Control Switch: 3*40A Ground Wire: 2mm2
Cooling Water Pressure: ≥0.2MPa Cooling Water Flow: ≥10L/Min
Color: Customizable Size: 460*270*450mm / 550*300*500mm
Weight: 45kg
High Light:

induction melting machine

,

electric metal melting furnace

LSZ-15 15kw Medium Frequency IGBT Small Gold Melting Induction Furnace

1. Main features of Medium Frequency Induction melting machine:



1. Induction melting machines can be used for the melting of steel, stainless steel, brass, aluminium, gold, silver so on.
2. Because of the stirring effect which caused by the magnetic force, the melting pool can be stirred during the melting course to ease the floating of the flux oxides to produce high quality casting parts.
3. Wide frequency range from 1KHZ to 20KHZ, working frequency can be designed by changing the coil compensating capacitor according to the melting material, quantity, stirring effect desire, working noise, melting efficiency other factors.
4. Power efficiency is 20% higher than the SCR medium frequency machines;
5. Small light, a lot of models can be selected to melt different amount of metals. Not only is it suitable for the factory, but also suitable for the college researching companies to use.



2. Melting Capacity of Medium Frequency Induction Melting Furnace:



Model Power Melting Capacity
steel, stainless steel copper, gold, silver aluminum, aluminum alloy
LSZ-15 15kw 3kg 10kg 3kg
LSZ-25 25kw 5kg 20kg 5kg
LSZ-35 35kw 10kg 30kg 10kg
LSZ-45 45kw 18kg 50kg 18kg
LSZ-70 70kw 25kg 100kg 25kg
LSZ-90 90kw 40kg 120kg 40kg
LSZ-110 110kw 50kg 150kg 50kg
LSZ-160 160kw 100kg 250kg 100kg





3. Medium Frequency Induction Melting Furnace Application:



15kw Medium Frequency  Induction Melting Furnace , Gold Melting Induction Furnace 0



4. Medium Frequency Induction Melting Furnace Feature:

1. Very easy to install and operate, Quickly study.
2. Ultra-small size, light weight, portable, occupies less than one square meter.
3. 24 hours uninterrupted smelting capacity.
4. Energy saving.
5. The furnace is to facilitate the replacement of different weights, different materials, different furnace way in order to accommodate each Kind smelting requirements.
6. The use of ultra-small frequency induction heating power supply frequency power, Its totally different from traditional furnace.
7. Heating through heat resistance, temperature uniformity.
8. The intermediate magnetic field on the molten metal with a magnetic stirring effect, and beneficial to ingredients are uniformly.
9. According to the recommended maximum smelting equipment and the amount of time each furnace smelting 20-60 minutes.



5. Company Brief Introduction :
15kw Medium Frequency  Induction Melting Furnace , Gold Melting Induction Furnace 1
6. Related Products:

Induction Heating

Machine

Induction Quenching

Machine

Induction Brazing

Machine

Large Melting Furnce
15kw Medium Frequency  Induction Melting Furnace , Gold Melting Induction Furnace 2 15kw Medium Frequency  Induction Melting Furnace , Gold Melting Induction Furnace 3 15kw Medium Frequency  Induction Melting Furnace , Gold Melting Induction Furnace 4 15kw Medium Frequency  Induction Melting Furnace , Gold Melting Induction Furnace 5
15kw Medium Frequency  Induction Melting Furnace , Gold Melting Induction Furnace 6 15kw Medium Frequency  Induction Melting Furnace , Gold Melting Induction Furnace 7 15kw Medium Frequency  Induction Melting Furnace , Gold Melting Induction Furnace 8 15kw Medium Frequency  Induction Melting Furnace , Gold Melting Induction Furnace 9
