| Type: | Induction Brazing Machine | Voltage: | 380V |
|---|---|---|---|
| Current: | 45A | Rated Capacity: | 30kw |
| Rated Duty Cycle: | 100% | Dimension: | 690*290*600mm |
| Weight: | 48kg | Usage: | Brazing, Welding,melting |
| Power: | 30kw | Color: | Optional |
| High Light: | induction brazing equipment,electric brazing machine |
||

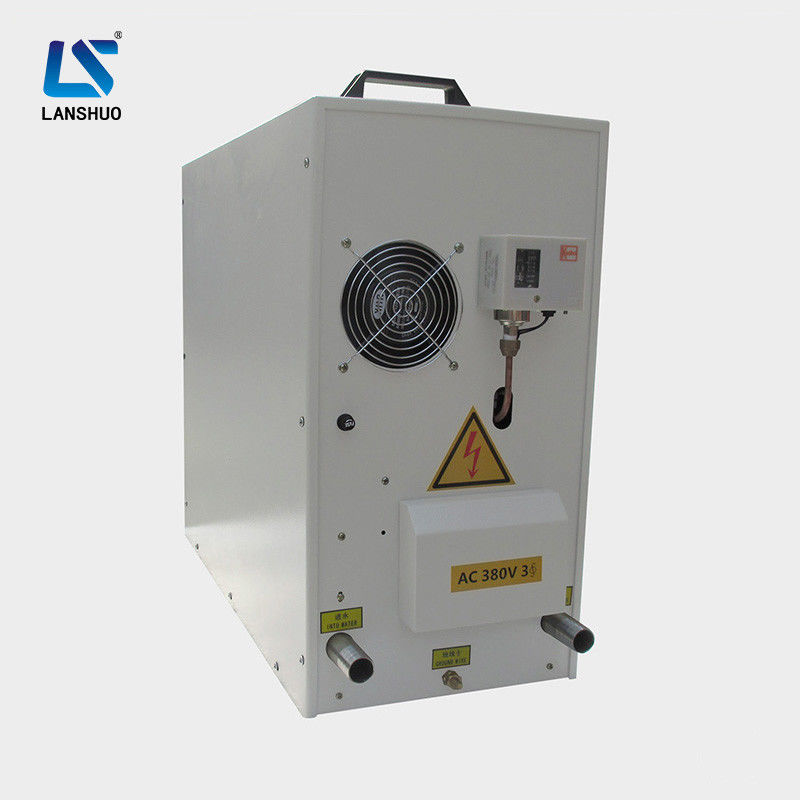

30kw Portable IGBT high frequency induction brazing machine
1. Feature of IGBT Induction Brazing Machine :
A. Fast Heating: the quickest heating speed is less than 1 second, and the heating speed adjusting and control are available.
B. Widely Applicable: it can be used to heat various metal parts.
C. Low Power Consumption: compared with traditional heating method, the heat efficiency can be over 95%.
D. High Effectiveness: fast warming and uniform heating, reduce the workpiece oxidation and deformation.
E. High Efficiency: can do 24 hours continuously working with comprehensive full load design.
F. Small Footprint & Light Weight:save space of workshop and easily moved.
G. Easy Operation: easy installation and operation, which can learn in only several minutes. It can be started to peform on condition that water and power supply are available.
H. Environmental Friendly: free of noisy, exhaust gas and dust, so can provide a better working surroundings
2. Technical Parameters of LSW-30 IGBT Induction Brazing Machine:
| Model | LSW-30 |
| Working Voltage | 380V, 50/60HZ |
| Max input power | 30kw |
| Oscillation frequency | 25-40KHZ |
| Duty cycle | 100% |
| Cooling water flow | 25L/Min,0.15-0.2MPa |
| Weight | 48kg |
| Dimension (L*W*H ) | 690*290*600mm |
| Material | stainless steel |
| Color | support customized |
| Usage | metal heating, brazing,melting etc |
3. IGBT Induction Brazing Machine Application:
high frequency induction heating equipment is particularly suitable for brazing, hot forging, melting, heat treatment and so on.
1> Brazing/ Welding
A. Carbide cutting tools welding, such as turning, milling, cutter knife;
B. The diamond saw blade welding, exploration drill bit welding
C. Metal joint welding, tube brazing etc.
2> Heating/ Hot Forging
A. Plate heating, bending and forming.
B. standard parts, fasteners, bolts and nuts through the hot forming.
C. the pipe through the hot forming, such as bends and so on.
3> Heat Treatment
A. the hardware hardening, such as pliers, hammers, strong pliers, wrenches.
B. various electric tools gear shaft of the high-frequency hardening heat treatment.
C. Metal pipe annealing, untensiil annealing, metal wire annealing etc.
4> Melting
Steel,iron, non-ferrous metals,graphite crucible smelting
