220V IGBT Copper Workpiece Induction Brazing Machine

220V IGBT Copper Workpiece Induction Brazing Machine
220V IGBT Copper Workpiece Induction Brazing Machine

Large Image :  220V IGBT Copper Workpiece Induction Brazing Machine

Product Details:
Place of Origin: China
Brand Name: Lanshuo
Certification: CE
Model Number: LSW-16
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: 1.Standard wooden case, plywood case, and custormized case; 2. Inner packing: packing plastic film and foam in case of friction dampness and shake; 3.Accessories: induction coil 1, foot pedal 1, installing and operating instruction 1 and custormized del
Delivery Time: 5-7 working days after receiving advanced payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2000 set per year
Detailed Product Description
Type: Induction Brazing Machine Voltage: 220V
Current: 35A Rated Capacity: 16kw
Rated Duty Cycle: 90% Dimension: 430*200*400mm
Weight: 25kg Usage: Brazing, Welding
Power: 16kw Color: Optional
High Light:

Copper Workpiece Induction Brazing Machine

,

IGBT Induction Brazing Machine

,

220V Induction Brazing Machine

220V IGBT Copper Workpiece high frequency induction heating brazing equipment



1. Induction Brazing Machine Brief Introduction :

high frequency induction heating equipment is particularly suitable for heat treatment and quenching, melting, annealing, the metal through the heat forging, extrusion, welding, brazing.

1. For welding the diamond segments ,grinding wheel;
2. Environment friendly design , voltage instability;
3. The machine can be automatic temperature control to realize with equipment;
4. High power ,High heating Speed, widely application range that can use various diamond tools;
5. Imported key parts ,lowest hitch, Small in size and taken easily.



2. Technical Parameters of LSW-16 Induction Heating Machine:

Model LSW-16
Working Voltage 220V, 50/60HZ
Max input power 16kw
Oscillation frequency 28-40KHZ
Duty cycle 100%
Cooling water flow 20L/Min,0.15-0.2MPa
Weight 25kg
Dimension (L*W*H ) 420*200*360mm
Material stainless steel
Color support customized
Usage metal heating, brazing,melting etc



3. Main characteristics of LSW-16 Induction Brazing Machine :

1. Adoping MOSFGT and IGBT inverting device, tracking frequency automatically
2. High frequency, heated quickly, its powei consumption is only 20%~30% of eletronic tube induction heating machine and other heating style.
3. Security and reliability, the equipments have the secure voltage and it's secure to operate
4. Manual, automatic regulating automatically, it can protect itself from over voltage, over current, lack of water, phase fail, over hot, etc
5. Recommend usage: Weld, forging, hot cooperate, melting, quenching, anneat etc.

4. Induction Brazing Machine Application:

Heat treatment industry
1. a variety of steam, Motorcycle high-frequency hardening heat treatment, such as: crankshaft, connecting rod, piston pin, camshaft, valves, various gears within the gearbox, a variety of fork, all kinds of spline shaft, drive axle, various small shaft crank pin, a variety of rocker, rocker shaft, high-frequency hardening heat treatment.
2. the hardware high-frequency hardening heat treatment, such as pliers, hammers, strong pliers, wrenches.
3. hydraulic components such as: piston pump plunger, rotor pump rotor, conversion shaft of the valves, gear of gear pump high frequency quenching.
4. various electric tools gear shaft of the high-frequency hardening heat treatment.
5, a variety of carpentry tools, such as: axes, planing and other heat treatment.

Forging industry
1. plate heating, bending and forming.
2. standard parts, fasteners through the hot forming.
3. the hardware tools through heat, such as pliers, wrenches and other heat through hot forming.
4. taper shank drill rod extrusion prospecting.
5. the pipe through the hot forming, such as bends and so on.

220V IGBT Copper Workpiece Induction Brazing Machine 0

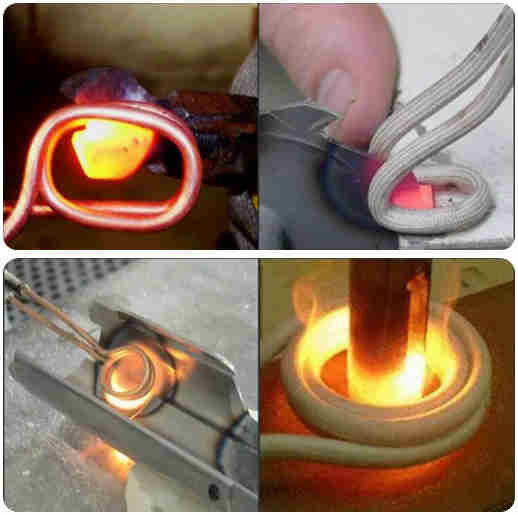

Brazing

1. metal tube welding: such as copper tube, steel tube, and aluminum tube’s butt welding, plug welding and welding sets.
2. alloy cutter welding: such as alloy turning, milling cutter, planer, saw blades, reamer, boring knife.
3. carbide saw blade welding: diamond saw blade welding, marble saw blade welding,woodworking saw blade welding, cut grass piece of welding, cut aluminum welding,
4. metal welding:such as: towel rack, soap nets, towel holder, auto-accessories,motor accessories, metal terminals, hardware pieces, electric heating tube parts and fasteners.

220V IGBT Copper Workpiece Induction Brazing Machine 1
Smelting
Steel,iron, non-ferrous metals,graphite crucible smelting

220V IGBT Copper Workpiece Induction Brazing Machine 2
