16kw Bearing High Frequency Electric Induction Brazing Machine Diamond Segment

16kw Bearing High Frequency Electric Induction Brazing Machine Diamond Segment
16kw Bearing High Frequency Electric Induction Brazing Machine Diamond Segment 16kw Bearing High Frequency Electric Induction Brazing Machine Diamond Segment 16kw Bearing High Frequency Electric Induction Brazing Machine Diamond Segment

Large Image :  16kw Bearing High Frequency Electric Induction Brazing Machine Diamond Segment

Product Details:
Place of Origin: China
Brand Name: Lanshuo
Certification: CE ISO
Model Number: LSW-16
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: 1.Standard wooden case, plywood case, and custormized case; 2. Inner packing: packing plastic film and foam in case of friction dampness and shake; 3.Accessories: induction coil 1, foot pedal 1, installing and operating instruction 1 and custormized del
Delivery Time: 5-7 working days after receiving advanced payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2000 set per year
Detailed Product Description
Type: Induction Brazing Machine Voltage: 220V
Current: 35A Rated Capacity: 16kw
Rated Duty Cycle: 90% Dimension: 430*200*400mm
Weight: 25kg Usage: Brazing, Welding
Power: 16kw Color: Optional
High Light:

16kw Bearing Induction Brazing Machine

,

Diamond Segment Induction Brazing Machine

,

Diamond Segment induction brazing equipment

16kw Bearing High Frequency electric diamond segment Induction Brazing Machine



1. Applications range of induction brazing welding machine:

The high-frequency induction heating welding equipment is based on the harmonic array theory, and adopts a new high-power power electronic device IGBT and a high-performance heating power supply with locking ring technology. Its power factor is close to 1, and the maximum power can reach 100KW, which can completely replace the high consumption Can tube type super audio power supply, machine type intermediate frequency power supply, and fine thyristor heating power supply. High-frequency induction heating welding equipment can instantly heat metal objects to any desired temperature, including its melting point; it can also locally heat metal objects.


1. Metal tube welding: such as copper tube, steel tube, and aluminum tube’s butt welding, plug welding and welding sets.
2. Alloy cutter welding: such as alloy turning, milling cutter, planer, saw blades, reamer, boring knife.
3. Carbide saw blade welding: diamond saw blade welding, marble saw blade welding,woodworking saw blade welding, cut grass piece of welding, cut aluminum welding,
4. Metal welding: such as: towel rack, soap nets, towel holder, auto-accessories,motor accessories, metal terminals, hardware pieces, electric heating tube parts and fasteners.
5. make machine according to customers' actual working situation.

16kw Bearing High Frequency Electric Induction Brazing Machine Diamond Segment 0

2. Technical Parameters of LSW-16 Induction Heating Machine:

Model LSW-16
Working Voltage 220V, 50/60HZ
Max input power 16kw
Oscillation frequency 28-40KHZ
Duty cycle 100%
Cooling water flow 20L/Min,0.15-0.2MPa
Weight 25kg
Dimension (L*W*H ) 420*200*360mm
Material stainless steel
Color support customized
Usage metal heating, brazing,melting etc

16kw Bearing High Frequency Electric Induction Brazing Machine Diamond Segment 1

3. Main characteristics of LSW-16 Induction Brazing Machine :

1). MOSFET power component and current inverting technologies have been used.
2). simple structure and light weight.
3). simple to operate, a few minutes is enough to learn it.
4). simple to install, installation can be done by unprofessional person very easily.
5). multi-display functions, with displays of over current, over voltage, water failure, phase failure and unfit lad and so on, machine can be protected from destroys and machines can be repaired easily.
6). light weight, small size.
7). different shape and size of induction coil can be changed easily to heat different parts.

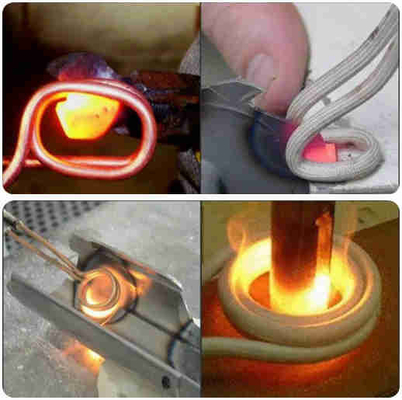

4. Application area of induction brazing machine:

Portable high frequency induction brazing machine has the advantages of small size, light weight, low failure rate, energy saving, and the welded joints are firm and beautiful. The geometry of the welded parts is not limited, the surface pattern will not be damaged, the internal crystal structure of the metal is unchanged, and the annealing range is small. Without obvious welding scars, it is widely used in the welding and annealing of heat treatment industry, water-cooled sanitary ware industry, hardware tool welding industry, electrical and electronic industry.

16kw Bearing High Frequency Electric Induction Brazing Machine Diamond Segment 2
1. Penetration forging of round steel.
2. shaft and other mechanical parts quenched.
3. machine tool guide quenching.
4. Quenching of auto parts and motorcycle parts.
5. pliers, wrenches, screwdrivers, hammers, axes and other parts heat treatment.

5. Advantage of high frequency induction brazing machine:

■ Adopted with MOSFET, IGBT power device and variable frequency control, LIHUA high frequency induction heaters enjoy high efficiency, energy saving and larger output power.
■ With constant current and constant power control function, the products can realize extremely optimized metal heating process,thus achieving high efficient, quick heating and greatly give play to the superiority of products.
■ Saving double electricity more than traditional high frequency induction heating device under the same conditions.
■ With 100% load design, it can work 24 hours constantly without a break. It can be equipped with infrared temperature measuring device to realize automatic control, promote heating quality and simplify artificial operation.
■ With three functional setting including heating-heat retaining-cooling, it can achieve required heating and incubation process to make itself suitable for repetitive and mass heating work.
■ The machine can display various states such as over current, over voltage, lacking of water, lacking of phase and light loading, thus providing higher reliability and durability.

16kw Bearing High Frequency Electric Induction Brazing Machine Diamond Segment 3
