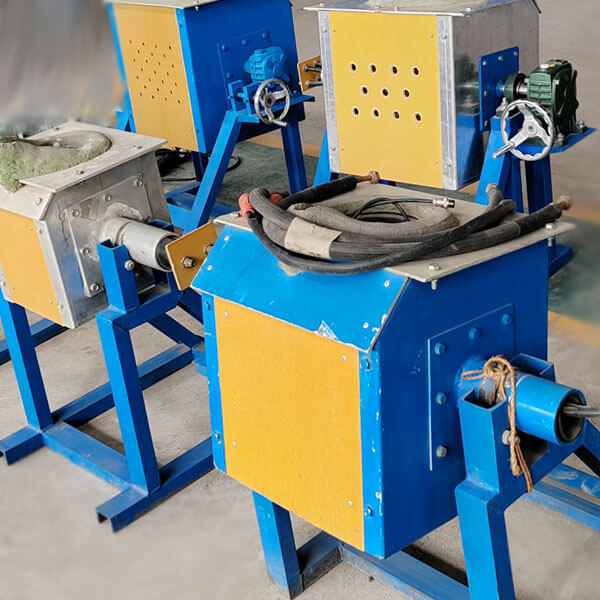

Induction Melting Furnace
>
|
|
| Place of Origin | China |
| Brand Name | Lanshuo |
| Certification | CE, ISO |
| Model Number | LSZ 45kw |
Medium Frequency Induction Furnace, steel induction melting furnace 18-50kg
Production Description:
1)Medium Frequency Induction Furnace for melting
2)Full digital control system with high accuracy
3) Melting steel, iron,stainless steel,copper,aluminium
4)0.15-20 tons capacity
5)Constant power output, speedy melting, good electricity saving efficiency.
6) Steel shell furnace structure, hydraulic tilting.
Main technical parameters of LSZ series induction melting furnace:
| Model | Power | Input Current | Voltage | Oscillation Frequency | Connecting Wire | Control Switch | Ground Wire | Cooling Water Pressure | Cooling Water Flow |
| LSZ-15 | 15KW | 18A | 3-Phase | 1~15KHz | 10mm² | 3×40A | 2mm² | ≥0.2MPa | ≥10L/Min |
| LSZ-25 | 25KW | 36A | 380V, | 10mm² | 3×60A | ||||
| LSZ-35 | 35KW | 57A | 50/60Hz | 16mm² | 3×80A | ||||
| LSZ-45 | 45KW | 80A | 35mm² | 3×120A | ≥15L/Min | ||||
| LSZ-70 | 70KW | 110A | 50mm² | 3×150A | |||||
| LSZ-90 | 90KW | 140A | 75mm² | 3×225A | ≥20L/Min | ||||
| LSZ-110 | 110KW | 160A | 90mm² | 3×225A | |||||
| LSZ-160 | 160KW | 240A | 120mm² | 3×300A |
Usage:
Medium Frequency Induction Furnace Mainly used in melting steel, iron, copper, aluminum and alloy, is with high melting efficiency, good electricity saving effect, good metal component uniformity, less burning loss, speedy temperature rise, easy control of temperature, is suitable to all kinds of metal melting.
Characters and Advantages:
1) Constant power output, speedy melting, good electricity saving efficiency.
2) Zero-voltage sweep-frequency style start, adapts to requirement of frequently start.
3) Comprehensive protection functions, such as overcurrency protection, overvoltage protection, current-limiting protection, voltage-limiting, water-break protection, and default protection, equipment runs reliably under premise of melting speed guarantee.
4) Easy to operate, suitable for all casting process
