16kw Induction Melting Copper / Steel / Iron / Silver / Gold / Aluminum IGBT Furnace
  • 16kw Induction Melting Copper / Steel / Iron / Silver / Gold / Aluminum IGBT Furnace
  • 16kw Induction Melting Copper / Steel / Iron / Silver / Gold / Aluminum IGBT Furnace
  • 16kw Induction Melting Copper / Steel / Iron / Silver / Gold / Aluminum IGBT Furnace
  • 16kw Induction Melting Copper / Steel / Iron / Silver / Gold / Aluminum IGBT Furnace
  • 16kw Induction Melting Copper / Steel / Iron / Silver / Gold / Aluminum IGBT Furnace
  • 16kw Induction Melting Copper / Steel / Iron / Silver / Gold / Aluminum IGBT Furnace
  • 16kw Induction Melting Copper / Steel / Iron / Silver / Gold / Aluminum IGBT Furnace
16kw Induction Melting Copper / Steel / Iron / Silver / Gold / Aluminum IGBT Furnace

16kw Induction Melting Copper / Steel / Iron / Silver / Gold / Aluminum IGBT Furnace

Place of Origin CHINA
Brand Name ZHENGZHOU LANSHUO
Certification CE
Model Number LSW-16
Product Details
Power:
16KW
DC Current:
30A
DC Voltage:
500V
Input Voltage:
Single-phase 220V 50-60HZ
Heating Frequency:
30-80KHZ
Melting Capacity:
1-2KG
Highlight:

16kw Induction Melting Furnace

,

IGBT Induction Melting Furnace

,

Silver Induction Melting Furnace

Payment & Shipping Terms
Minimum Order Quantity
1 SET
Price
900USD
Packaging Details
WOODEN CASE
Delivery Time
3-5 WORKING DAYS
Payment Terms
T/T
Supply Ability
1 SET
Product Description
parameter Power 16KW
DC current 30A
DC voltage 500V
Input voltage Single-phase 220V 50-60HZ
Heating frequency 30-80KHZ
Air switch 3*50A
Ground wire 1mm²
Water pressure 0.15-0.2MPa
Melting time 3-5min
Melting capacity 1-2kg



Power installation Input power cord 6mm²copper wire
Input power control switch 3*50A
Equipment grounding wire 1mm²soft copper wire



Cooling water installation Number of water in the control cabinet water intake:two water outlet:two
Water pipe specification Inlet water pipe: inner diameter 12mm
Water outlet pipe: inner diameter 12mm

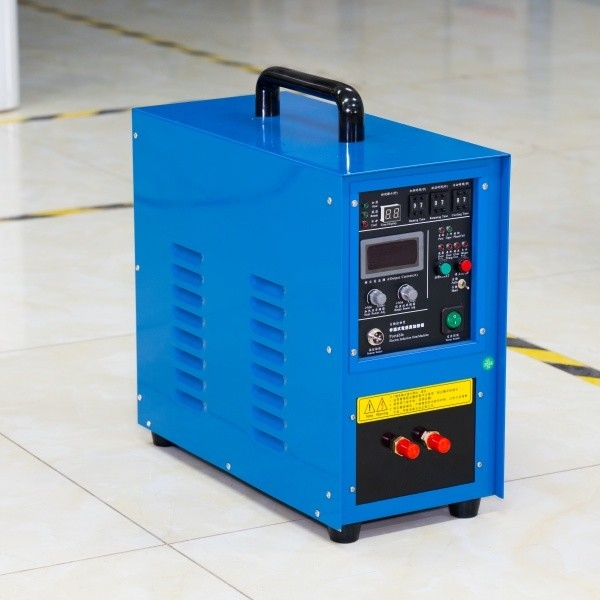

Pictures of LSW-16KW:

16kw Induction Melting Copper / Steel / Iron / Silver / Gold / Aluminum IGBT Furnace 0   16kw Induction Melting Copper / Steel / Iron / Silver / Gold / Aluminum IGBT Furnace 1



16kw Induction Melting Copper / Steel / Iron / Silver / Gold / Aluminum IGBT Furnace 2  16kw Induction Melting Copper / Steel / Iron / Silver / Gold / Aluminum IGBT Furnace 3



CE:

16kw Induction Melting Copper / Steel / Iron / Silver / Gold / Aluminum IGBT Furnace 4

Tags:

electric metal melting furnace,

medium frequency induction melting furnace,

induction melting machine
