25KW Induction Melting Furnace for Brass Bronze Copper 20kg Capacity
  • 25KW Induction Melting Furnace for Brass Bronze Copper 20kg Capacity
  • 25KW Induction Melting Furnace for Brass Bronze Copper 20kg Capacity
  • 25KW Induction Melting Furnace for Brass Bronze Copper 20kg Capacity
  • 25KW Induction Melting Furnace for Brass Bronze Copper 20kg Capacity
  • 25KW Induction Melting Furnace for Brass Bronze Copper 20kg Capacity
  • 25KW Induction Melting Furnace for Brass Bronze Copper 20kg Capacity
  • 25KW Induction Melting Furnace for Brass Bronze Copper 20kg Capacity
25KW Induction Melting Furnace for Brass Bronze Copper 20kg Capacity

25KW Induction Melting Furnace for Brass Bronze Copper 20kg Capacity

Place of Origin CHINA
Brand Name ZHENGZHOU LANSHUO
Certification CE
Model Number LSZ-25
Product Details
Voltage:
3 Phase 380V, 50/60HZ
Power:
25KW
Input Current:
36A
Oscillation Frequency:
1-15KHZ
Water Pressure:
≥ 0.2Mpa, ≥10L/min
Melting Capacity And Time:
5kg Aluminum/aluminum Alloy 10-15min/pot
Melting Temperature Max:
1800℃
Highlight:

25KW brass melting furnace

,

induction copper melting furnace 20kg

,

bronze melting furnace with warranty

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
2000-4000usd
Packaging Details
plywood packaging
Delivery Time
3-5 working days
Payment Terms
T/T
Product Description
Medium Frequency Induction Melting Furnace 20kg Brass Bronze Copper Induction Melting Furnace
Technical Specifications
Attribute Value
Voltage 3 phase 380V, 50/60HZ
Power 25KW
Input current 36A
Oscillation frequency 1-15KHZ
Water pressure ≥ 0.2Mpa, ≥10L/min
Weight (after packaging) 200kg
Melting temperature max 1800℃
Melting Capacity & Performance
  • 5kg steel/iron/stainless steel: 20-25min/pot
  • 20kg copper/gold/silver: 20-30min/pot
  • 5kg aluminum/aluminum alloy: 10-15min/pot
Cooling System Options
  • Use 3m³ water tank and 0.75kw centrifugal pump
  • Use 6T closed cooling water tower
  • Use 4P Chiller
Standard Accessories
  • 1 connecting cable between power supply cabinet and capacitor cabinet
  • 1 connecting cable between capacitor cabinet and furnace
  • 1 remote control cable
  • 1 spare crucible

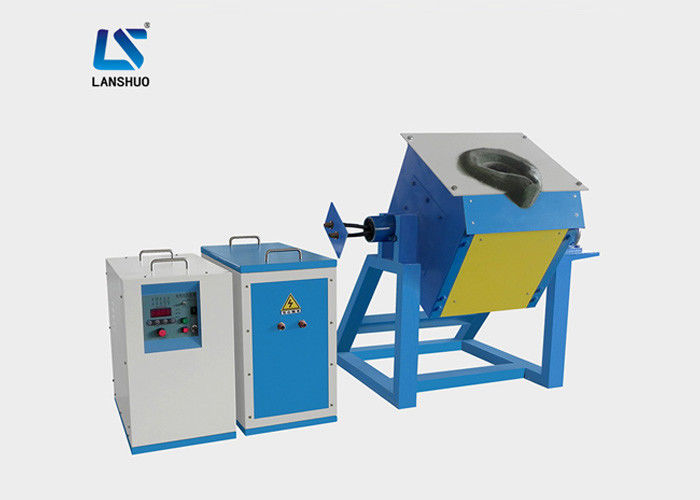

Product Images
25KW Induction Melting Furnace for Brass Bronze Copper 20kg Capacity 0
25KW Induction Melting Furnace for Brass Bronze Copper 20kg Capacity 1
25KW Induction Melting Furnace for Brass Bronze Copper 20kg Capacity 2
25KW Induction Melting Furnace for Brass Bronze Copper 20kg Capacity 3
25KW Induction Melting Furnace for Brass Bronze Copper 20kg Capacity 4
25KW Induction Melting Furnace for Brass Bronze Copper 20kg Capacity 5
Certification
25KW Induction Melting Furnace for Brass Bronze Copper 20kg Capacity 6
