Closed Cycle Cooling Water System For Air Conditioning System / Frozen Series

Name: Closed Cycle Cooling Water System For Air Conditioning System / Frozen Series
Brand: Lanshuo
SKU: LSN-50B
Price: 5000 USD
Availability: InStock
Rating: 4.5 (148 reviews)

Place of Origin	China
Brand Name	Lanshuo
Certification	CE
Model Number	LSN-50B

Product Details

Type:

Closed Type Cooling Tower

Cooling Type:

Counter Flow

Material:

Metal

Voltage:

380V/3P/50Hz

Application:

Cooling System

Cooling Capacity:

300000Kcal/h

Fan Power:

1.1kw, Two Sets

Color:

Optional

Highlight:

closed circuit cooling tower

closed loop water cooling system

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

USD5000-8000 / set

Packaging Details

Cooling Tower closed packing with plastic film, and then put in the standard exporting container

Delivery Time

5-7 working days after receiving advanced payments

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 sets per year

Product Description

LSN-50B Industrial Water Spray Closed Loop Water Cooling Tower

1. Body Structure and performance of closed circuit cooling tower:
The cooling tower body is made of high-quality fiberglass reinforced plastics, the rubber coating surface of which is made of imported raw materials, which is even in color and will not fade or degrade easily.All structure parts made of steel are processed in hot-galvanizing.Injected molded parts are used widely for they are erosion-proof, high in intensity, light in weight and easy to attach.
The cooling tower has a successful water floating control, rendering a loss less than 0.001%.
- Use low-speed wind machine to avoid too much water spray in the air;
- Use waterproof sleeves on water distribution pipes to collect spilled water;
- The ground frame is larger than enclosure and is equipped with PVC shutters to avoid water spilling out of the tower.

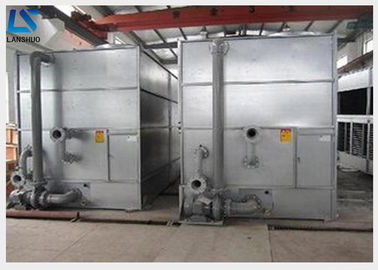

Closed Cycle Cooling Water System For Air Conditioning System / Frozen Series 0

Technical Parameters of Water Cooling Tower
Model		LSN-50B
Water Cooling Capacity		300000kcal / h
Cooling Water Flow		32m³/h
Working Voltage		380V - 50HZ
Water Outlet Diameter		DN75mm
Water Inlet Diameter		DN75mm
Water Replenishing Diameter		DN32mm
Drain Outlet Diameter		DN32mm
Fan (power of the generator)		1.1kw*2sets
Spray Pump	Rated Power	1.5kw
	Water Flow	32m³/h

Circulating pump	Rated Power	5.5kw
	Lift	28m
	Flow	46m³/h
Dimension (LWH)		275012502450mm 10005002000mm
Weight		1100kg

2. Main Features of cooling tower:

1, Cooling tower is mainly used for cooling in air conditioning system, frozen series, injection molding, leather, foam, power generation, steam turbine, aluminum processing, air compressors, industrial cooling water and other fields;
2, Most used for air conditioning cooling, freezing, plastic chemical industry;
3, Closed circuit cooling tower have the Attractive shape: the Small dimension of shape, the low height of the tower, light weight of tower, and multiform layout in covering the area.

3. Parts of Closed Type Cooling Tower:

Coil: Made of high-quality seamless steel pipes. The coil unit are galvanized entirely to improve the corrosion resistance ability and extend the service time. The coils can also be made by SS-304/316L stainless steel or T2 red copper. Maximum pressure of our coils could reach to 32Mpa.
Spray Pump: Sealed by top quality rotary no-limited machinery seal, no leaking, long lifecycle, small horse power, large flow volume, low noise and high performance.
Fan: Aluminum alloy axis-flow type
Casing: SS-304/316L or imported Aluminum-zinc alloy plate.
Removable Drift Eliminator: PVC material; Make sure that the water loss rate will be less than 0.005%.
Cooling Tower Fill: 100% Original Material PVC Infill, special design with great cooling effect.
