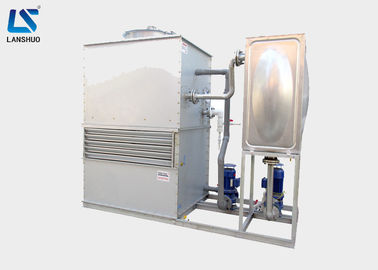

400000Kcal/h Closed Circuit Cooling Tower Counter Flow Type Energy Saving
  • 400000Kcal/h Closed Circuit Cooling Tower Counter Flow Type Energy Saving

400000Kcal/h Closed Circuit Cooling Tower Counter Flow Type Energy Saving

Place of Origin China
Brand Name Lanshuo
Certification CE
Model Number LSN-80B
Product Details
Type:
Closed Type Cooling Tower
Cooling Type:
Counter Flow
Material:
Metal
Voltage:
380V/3P/50Hz
Application:
Cooling System
Cooling Capacity:
400000Kcal/h
Fan Power:
6kw, Two Sets
Color:
Optional
Highlight:

closed circuit cooling tower

,

closed type cooling tower

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
USD5000-8000 / set
Packaging Details
Cooling Tower closed packing with plastic film, and then put in the standard exporting container
Delivery Time
5-7 working days after receiving advanced payments
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
1000 sets per year
Product Description

LSN-80B Industrial Closed Water Cooling Tower Price



1. Main Features of closed circuit water cooling tower:

1. Cooling tower is mainly used for cooling in air conditioning system, frozen series, injection molding, leather, foam, power generation, steam turbine, aluminum processing, air compressors, industrial cooling water and other fields;
2. Most used for air conditioning cooling, freezing, plastic chemical industry;
3. Closed circuit cooling tower have the Attractive shape: the Small dimension of shape, the low height of the tower, light weight of tower, and multiform layout in covering the area.

Technical Parameters of Water Cooling Tower
Model
LSN-80B
Water Cooling Capacity
400000kcal / h
Cooling Water Flow
80m³/h
Working Voltage
380V - 50HZ
Water Outlet Diameter
DN108mm
Water Inlet Diameter
DN108mm
Water Replenishing Diameter
DN32mm
Drain Outlet Diameter
DN32mm
Fan (power of the generator)
6kw*2sets

Spray Pump
Rated Power
2.2kw
Water Flow
65m³/h
Circulating pump
Rated Power
11kw
Lift
32m
Flow
65m³/h

400000Kcal/h Closed Circuit Cooling Tower Counter Flow Type Energy Saving 0

400000Kcal/h Closed Circuit Cooling Tower Counter Flow Type Energy Saving 1

2. Parts of Closed Type Cooling Tower:

400000Kcal/h Closed Circuit Cooling Tower Counter Flow Type Energy Saving 2

  • Coil: Made of high-quality seamless steel pipes. The coil unit are galvanized entirely to improve the corrosion resistance ability and extend the service time. The coils can also be made by SS-304/316L stainless steel or T2 red copper. Maximum pressure of our coils could reach to 32Mpa.
  • Spray Pump: Sealed by top quality rotary no-limited machinery seal, no leaking, long lifecycle, small horse power, large flow volume, low noise and high performance.
  • Fan: Aluminum alloy axis-flow type
  • Casing: SS-304/316L or imported Aluminum-zinc alloy plate.
  • Removable Drift Eliminator: PVC material; Make sure that the water loss rate will be less than 0.005%.
  • Cooling Tower Fill: 100% Original Material PVC Infill, special design with great cooling effect.

3. Cooling Tower Package:

   1. the body is designed to 2 parts: upper body and bottom body, can be easily divided into two parts, and loaded into container;

   2. shipping with 20ft and 40ft container.

400000Kcal/h Closed Circuit Cooling Tower Counter Flow Type Energy Saving 3
4.Customer Visit:
400000Kcal/h Closed Circuit Cooling Tower Counter Flow Type Energy Saving 4
