40T Industrial Closed Loop Cooling Tower 240000Kcal/h
  • 40T Industrial Closed Loop Cooling Tower 240000Kcal/h
  • 40T Industrial Closed Loop Cooling Tower 240000Kcal/h
40T Industrial Closed Loop Cooling Tower 240000Kcal/h

40T Industrial Closed Loop Cooling Tower 240000Kcal/h

Place of Origin China
Brand Name Lanshuo
Certification CE ISO
Model Number LSN-40B
Product Details
Type:
Closed Type Cooling Tower
Application:
Cooling Industrial Machine
Cooling Type:
Counter Flow
Material:
Galvanized Steel Sheet / Stainless Steel Sheet
Voltage:
380V/3-Phase/50Hz
Cooling Capacity:
240000Kcal/h
Fan Power:
0.75kw, 2 Sets
Spray Pump Power:
1.5kw
Circulation Pump Power:
4kw
Warranty:
12 Months
Highlight:

40T industrial cooling tower

,

closed loop cooling tower 240000Kcal/h

,

industrial cooling tower with warranty

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
USD 5000-6000 / set
Packaging Details
plywood case / pallet
Delivery Time
5-7 working days after receiving advanced payments
Payment Terms
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability
1000 sets per year
Product Description
40T Industrial Closed Cooling Tower Counter Flow Water Cooling Tower
Product Specifications
Attribute Value
Type Closed Type Cooling Tower
Application Cooling industrial machine
Cooling Type Counter Flow
Material Galvanized Steel Sheet / Stainless Steel Sheet
Voltage 380V/3-Phase/50Hz
Cooling Capacity 240000Kcal/h
Fan power 0.75kw, 2 sets
Spray pump power 1.5kw
Circulation pump power 4kw
Warranty 12 months
Industrial Cooling Tower Closed Water Cooling Tower
Main Features
  • Dual Cooling System: Combines water cooling and air cooling for optimal performance
  • Air Cooling: Stainless steel tubes absorb heat from circulating liquid, expelled by top-mounted fan
  • Water Cooling: Automatic spray system activates when temperatures exceed set points, creating evaporative cooling
  • Uses soft/purified water to extend equipment lifespan
  • Fully closed loop system prevents water loss, scaling, and blockages
  • Compact footprint requires no pond, saving space
  • Designed for continuous 24/7 operation
Product Overview
40T Industrial Closed Loop Cooling Tower 240000Kcal/h 0
Cooling towers efficiently remove heat absorbed in circulating cooling water systems for power plants, refineries, processing facilities, and more. Our 40T model handles substantial cooling demands while conserving water resources through closed-loop operation.
Technical Parameters
Model LSN-40B
Water Cooling Capacity 240000kcal/h
Cooling Water Flow 40m³/h
Working Voltage 3-phase 380V, 50HZ
Water Outlet Diameter DN75
Water Inlet Diameter DN75
Water Replenishing Diameter DN20
Drain Outlet Diameter DN20
Fan (power of the generator) 0.75kw*2 sets
Spray Pump 1.5kw, 32m³/h flow
Circulating Pump 4kw, 32m lift, 25m³/h flow
Dimensions (L*W*H) 3360*1250*2580mm
Weight 910kg

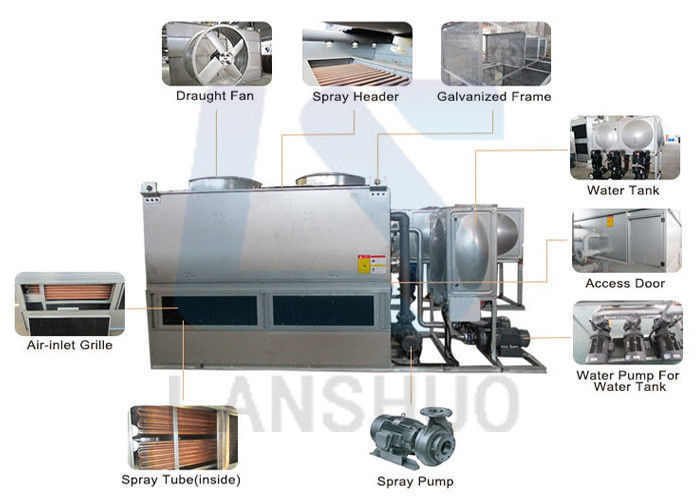

Key Components
  • Coil: High-quality seamless stainless steel/copper pipes with galvanized coating for corrosion resistance (up to 32Mpa pressure rating)
  • Spray Pump: Premium rotary seal design for leak-free operation with high flow and low noise
  • Fan: Aluminum alloy axial-flow type
  • Casing: SS-304/316L or imported Aluminum-zinc alloy
  • Drift Eliminator: Removable PVC design ensures water loss below 0.005%
  • Cooling Tower Fill: 100% original PVC material with optimized cooling design
Packaging
40T Industrial Closed Loop Cooling Tower 240000Kcal/h 1
Certifications
40T Industrial Closed Loop Cooling Tower 240000Kcal/h 2
40T Industrial Closed Loop Cooling Tower 240000Kcal/h 3
40T Industrial Closed Loop Cooling Tower 240000Kcal/h 4
