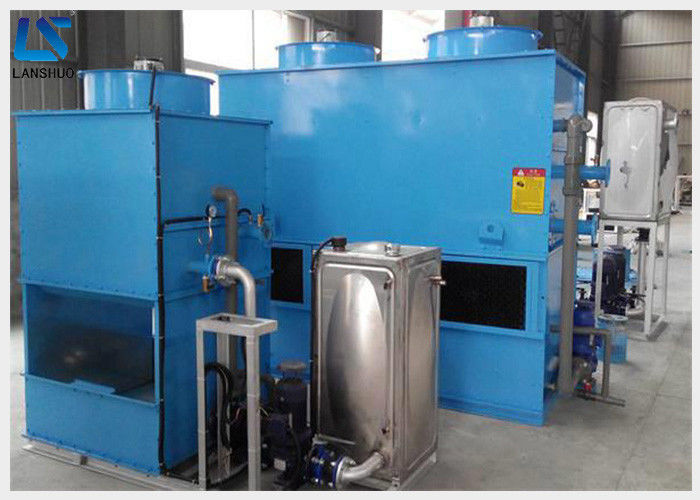

High Efficiency 60000Kcal/h Square Type Cooling Tower Closed Circuit

High Efficiency 60000Kcal/h Square Type Cooling Tower Closed Circuit
High Efficiency 60000Kcal/h Square Type Cooling Tower Closed Circuit High Efficiency 60000Kcal/h Square Type Cooling Tower Closed Circuit

Large Image :  High Efficiency 60000Kcal/h Square Type Cooling Tower Closed Circuit

Product Details:
Place of Origin: China
Brand Name: Lanshuo
Certification: CE
Model Number: LSN-10B
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD5000-8000 / set
Packaging Details: Cooling Tower closed packing with plastic film, and then put in the standard exporting container
Delivery Time: 5-7 working days after receiving advanced payments
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 sets per year
Detailed Product Description
Type: Closed Type Cooling Tower Cooling Type: Counter Flow
Material: Metal Voltage: 380V/3P/50Hz
Weight: 750kg Application: Cooling System
Cooling Capacity: 60000Kcal/h Fan Power: 0.55kw, One Sets
Color: Optional
High Light:

60000Kcal/H Square Type Cooling Tower

,

Closed Circuit Square Type Cooling Tower

,

60000Kcal/H closed circuit cooling tower

High Efficiency industrial commercial closed circuit square type cooling tower



1. Brief Introduction of closed circuit cooling tower:

   Main Features
   1, Cooling tower is mainly used for cooling in air conditioning system, frozen series, injection molding, leather, foam, power generation, steam turbine, aluminum processing, air compressors, industrial cooling water and other fields;
   2, Most used for air conditioning cooling, freezing, plastic chemical industry;
   3, Closed circuit cooling tower have the Attractive shape: the Small dimension of shape, the low height of the tower, light weight of tower, and multiform layout in covering the area.

High Efficiency 60000Kcal/h Square Type Cooling Tower Closed Circuit 0

Technical Parameters of Water Cooling Tower
Model
LSN-10B
Water Cooling Capacity
60000kcal / h
Cooling Water Flow
8 m³/h
Working Voltage
380V - 50HZ
Water Outlet Diameter
DN63mm
Water Inlet Diameter
DN63mm
Water Replenishing Diameter
DN32mm
Drain Outlet Diameter
DN25mm
Fan (power of the generator)
0.55kw*1sets

Spray Pump
Rated Power
0.75kw
Water Flow
23m³/h
Circulating pump
Rated Power
2.2kw
Lift
23m
Flow
12m³/h
Dimension (L*W*H)
2300*1000*2250mm
Weight
550kg

High Efficiency 60000Kcal/h Square Type Cooling Tower Closed Circuit 1

2. Parts of Closed Type Cooling Tower:

  • Coil: Made of high-quality seamless steel pipes. The coil unit are galvanized entirely to improve the corrosion resistance ability and extend the service time. The coils can also be made by SS-304/316L stainless steel or T2 red copper. Maximum pressure of our coils could reach to 32Mpa.
  • Spray Pump: Sealed by top quality rotary no-limited machinery seal, no leaking, long lifecycle, small horse power, large flow volume, low noise and high performance.
  • Fan: Aluminum alloy axis-flow type
  • Casing: SS-304/316L or imported Aluminum-zinc alloy plate.
  • Removable Drift Eliminator: PVC material; Make sure that the water loss rate will be less than 0.005%.
  • Cooling Tower Fill: 100% Original Material PVC Infill, special design with great cooling effect.

3. Cooling Tower Package:

   1. the body is designed to 2 parts: upper body and bottom body, can be easily divided into two parts, and loaded into container;

   2. shipping with 20ft and 40ft container.

High Efficiency 60000Kcal/h Square Type Cooling Tower Closed Circuit 2
4.Principle of closed type cooling tower:
The primary use of cooling towers is to remove the heat absorbed in the circulating cooling water system used in power plants, petroleum refineries, petrochemical plants, natural gas processing plants, food processing plants, semi-conductor plants Etc… So Same Cooled Water Can Be Used Again… Which Saves Precious water …The smallest cooling towers are designed to handle water streams of only a few Liters of water per minute supplied in small pipes like those might see in a residence, while the largest cool hundreds of thousands of Liters per minute supplied in pipes as much as 15 feet (about 5 meters) in diameter on a large power plant.

A Cooling Tower is a heat exchange system that removes waste heat from a process system fluid, usually water.Cooling towers are used in both commercial and industrial applications.
