Closed Circuit / Closed Loop Cooling Tower Stainless Steel CE Certification
  • Closed Circuit / Closed Loop Cooling Tower Stainless Steel CE Certification
  • Closed Circuit / Closed Loop Cooling Tower Stainless Steel CE Certification
  • Closed Circuit / Closed Loop Cooling Tower Stainless Steel CE Certification
  • Closed Circuit / Closed Loop Cooling Tower Stainless Steel CE Certification

Closed Circuit / Closed Loop Cooling Tower Stainless Steel CE Certification

Place of Origin China
Brand Name Lanshuo
Certification CE
Model Number LSN-20B
Product Details
Type:
Closed Type Cooling Tower
Cooling Type:
Counter Flow
Material:
Metal
Voltage:
380V/3P/50Hz
Power:
11kw
Dimension:
2000*1250*2200mm
Weight:
750kg
Application:
Cooling System
Cooling Capacity:
120000Kcal/h
Fan Power:
0.55kw, Two Sets
Color:
Optional
High Light:

closed circuit cooling tower

,

closed type cooling tower

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
USD5000-8000 / set
Packaging Details
Cooling Tower closed packing with plastic film, and then put in the standard exporting container
Delivery Time
5-7 working days after receiving advanced payments
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
1000 sets per year
Product Description

LSN-20B Industrial Closed Circuit Water Cooling Tower for Sale

1. Brief Introduction of closed circuit cooling tower:

Closed Circuit / Closed Loop Cooling Tower Stainless Steel CE Certification 0

Technical Parameters of Water Cooling Tower
Model
LSN-20B
Water Cooling Capacity
120000kcal / h
Cooling Water Flow
28 m³/h
Working Voltage
380V - 50HZ
Water Outlet Diameter
DN63mm
Water Inlet Diameter
DN63mm
Water Replenishing Diameter
DN32mm
Drain Outlet Diameter
DN25mm
Fan ()
0.55kw*2sets

Spray Pump
Rated Power
1.1kw
Water Flow
23m³/h
Circulating pump
Rated Power
3kw
Lift
28m
Flow
23m³/h
Dimension (L*W*H)
3000*1000*2250mm
Weight
700kg

2. Advantage of closed circuit cooling tower:

Water-cooled cable using high-quality multi-strand copper stranded copper material, high-strength flame-retardant rubber jacket tube, cold-formed joints, contact, and strong tensile strength.

1 .Easy to maintainthe huge inside spare space is convenient for people to access to maintain the cooling tower

2.Avoiding scaling: better water coverage around the tube is due to air and spray water flowing in smooth,patallel, downward path over the coil, promoting dry spots since the water is not stripped from the underside of the tubes by the airflow.

3. Parts of Closed Type Cooling Tower:

  • Coil: Made of high-quality seamless steel pipes. The coil unit are galvanized entirely to improve the corrosion resistance ability and extend the service time. The coils can also be made by SS-304/316L stainless steel or T2 red copper. Maximum pressure of our coils could reach to 32Mpa.
  • Spray Pump: Sealed by top quality rotary no-limited machinery seal, no leaking, long lifecycle, small horse power, large flow volume, low noise and high performance.
  • Fan: Aluminum alloy axis-flow type
  • Casing: SS-304/316L or imported Aluminum-zinc alloy plate.
  • Removable Drift Eliminator: PVC material; Make sure that the water loss rate will be less than 0.005%.
  • Cooling Tower Fill: 100% Original Material PVC Infill, special design with great cooling effect.

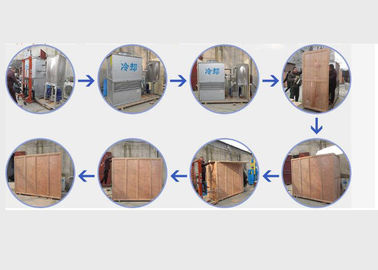

4. Cooling Tower Package:

   1. the body is designed to 2 parts: upper body and bottom body, can be easily divided into two parts, and loaded into container;

   2. shipping with 20ft and 40ft container.

Closed Circuit / Closed Loop Cooling Tower Stainless Steel CE Certification 1

5.Company Introduction :
Closed Circuit / Closed Loop Cooling Tower Stainless Steel CE Certification 2
Closed Circuit / Closed Loop Cooling Tower Stainless Steel CE Certification 3
6.Customer Visit:
Closed Circuit / Closed Loop Cooling Tower Stainless Steel CE Certification 4
7.Fair Cases:
Closed Circuit / Closed Loop Cooling Tower Stainless Steel CE Certification 5Closed Circuit / Closed Loop Cooling Tower Stainless Steel CE Certification 6
8.Tradeing Process:
Closed Circuit / Closed Loop Cooling Tower Stainless Steel CE Certification 7
